WL-FA0510-xxRD-GX

Product name: FPC connector; Part Number: WL-FA0510-xxRD-GX; Specifications: FPC 0.5P 1.0H connector 0.3P FPC; Plastic: LCP, Natural/Black, High Temp Resistant, UL94 V-0; Terminal: Phosphor Bronze; Shell: LCP

Inquiry

Details

Technical parameters:

1.HOUSING: HIGHT-TEMP PLASTIC,UL 94-V0,COLOR:WHITE;

2.COVER: HIGHT-TEMP PLASTIC,UL 94-V0,COLOR:BLACK;

3.CONTACT: Phosphor Bronze

4.LEG: Brass.

5.CONTACT: GOLD OR TIN PLATED ON NICKEL OVERALL.

6.LEG: TIN PLATED ON NICKEL OVERALL.

7.CURRENT RATING: 0.4A AC/DC

8.VOLTAGE RATING: 50V AC/DC

9.TEMPERATURE RANGE: -55'C~+85'C;

Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

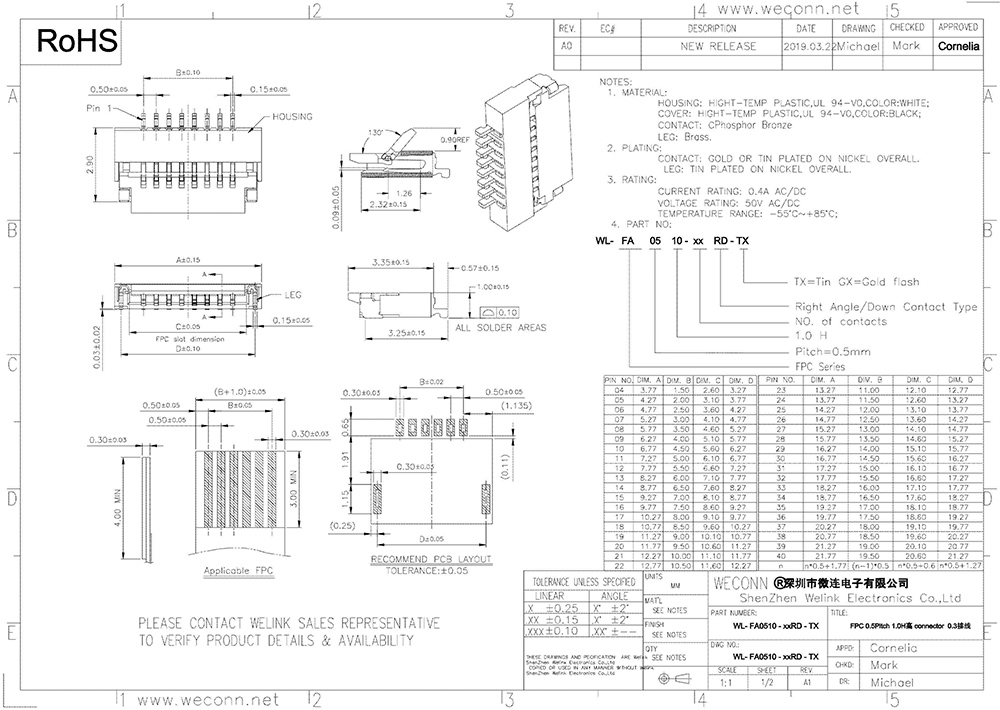

Drawing:
